Available in 24,000 BTU and 36,000 BTU.
Aeris ductless mini-split air conditioners are efficient, dependable, and affordable. Constructed of high-quality Japanese internal components using the highest grade pure copper coils and lines, these units are perfect for both residential and hydroponic applications.
The Aeris 2 Ton Unit produces 24,000 BTU’s of power, which is enough to heat and cool 900 ft² of living space or provide climate control for 6,600 watts of vented lighting.
The Aeris 3 Ton Unit produces 36,000 BTU’s of power, which is enough to heat and cool 1350 ft² of living space or provide climate control for 10,000 watts of vented lighting.
These units feature a 25 foot flexible steel braided lineset with the most reliable quick-connect fittings available, saving you time and money on the installation. The system also comes equipped with a wall-mounted programmable thermostat and a remote control that controls separate day and night settings.
Features
- Auto-Restart
If the unit loses power, it will automatically restart with the prior settings once power has been restored.
- Anti-Mildew
When turning off the unit from COOL, AUTO (COOL), or DRY modes, the air conditioner will continue to operate at very low power to dry up condensed water and prevent mildew growth.
- Wi-Fi Control (some units)
Wi-Fi control allows you to control your air conditioner using your mobile phone and a Wi-Fi connection.
- Louver Angle Memory (some units).
When turning on your unit, the louver will automatically resume its former angle.
- Refrigerant Leakage Detection (some units)
The indoor unit will automatically display "EC" when it detects refrigerant leakage.
VOID if non-quick connect unit is not installed by a licensed HVAC technician.
VOID if compressor is in attic or room without proper ventilation.
VOID if hooked up with incorrect voltage.

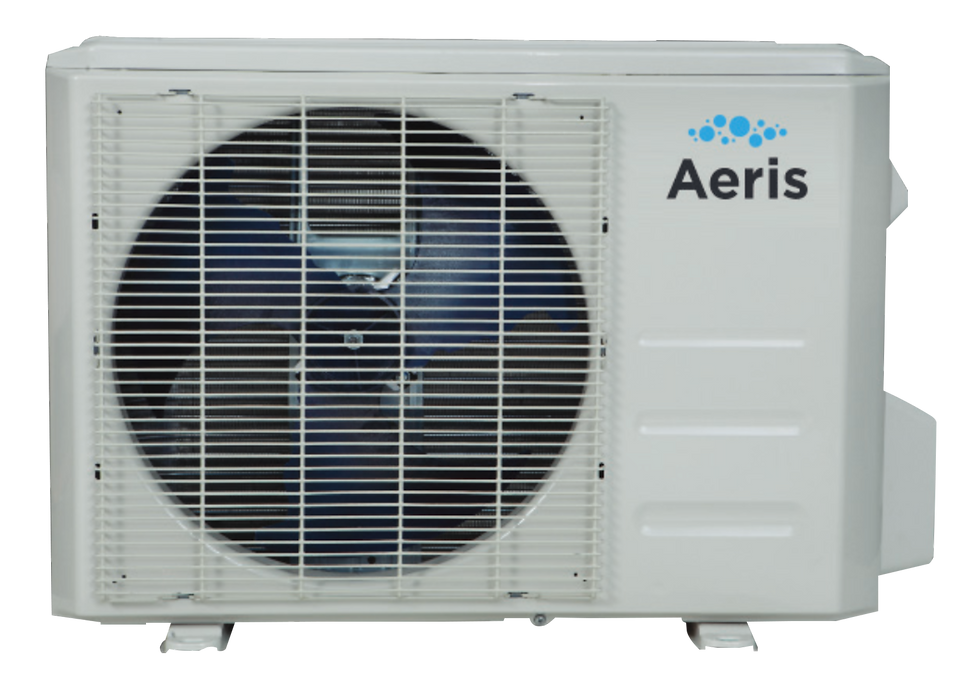

Aeris Mini Split Air Conditioner
COOLING CAPACITY
- Btu/h: 24,000
ELECTRICAL
- Power Supply: 240V / 60 Hz / 1 Ph
- Power Input: 2665 Watts
- Current: 11.7 Amps
PERFORMANCE
- SEER: 16
- Ambient Temperature Range: Cooling: -5F – 122F / Heating: -5F – 86F
- Indoor Fan Speed (Hi/Mi/Lo): 1200 / 1050 / 750 r/min
- Air Flow Volume (CFM): 853 / 647 / 471
- Noise Level (INDOOR): 54.5 / – / 38.5 dB(A)
- Noise (OUTDOOR): 63 dB(A)
DIMENSIONS & WEIGHT
- Net Dimensions (INDOOR): 42-1/2″ x 8-7/8″ x 13-1/4″ (W x H x D)
- Net Dimensions (OUTDOOR): 33-1/4″ x 14-1/4″ x 27-1/2″ (W x H x D)
- Packing Dimensions (INDOOR): 52″ x 17″ x 15-1/2″ (W x H x D)
- Packing Dimensions (OUTDOOR): 38-1/2″ x 17″ x 29-1/2900″ (W x H x D)
- Net Weight (INDOOR): 50.0 lbs
- Net Weight (OUTDOOR): 115.10 lbs
- Gross Weight (INDOOR): 65.7 lbs
- Gross Weight (OUTDOOR): 122.10 lbs
- Piping Size (LIQUID): 3/8″
- Piping Size (GAS): 5/8″
COOLING CAPACITY
- Btu/h: 36,000
ELECTRICAL
- Power Supply: 240V / 60 Hz / 1 Ph
- Power Input: 4235 Watts
- Current: 18.5 Amps
PERFORMANCE
- SEER: 16
- Ambient Temperature Range: Cooling: -5F – 122F / Heating: -5F – 86F
- Indoor Fan Speed (Hi/Mi/Lo): 1200 / 1050 / 750 r/min
- Air Flow Volume (CFM): 853 / 647 / 471
- Noise Level (INDOOR): 54.5 / – / 38.5 dB(A)
- Noise (OUTDOOR): 63 dB(A)
DIMENSIONS & WEIGHT
- Net Dimensions (INDOOR): 49-1/2″ x 11-1/8″ x 14-1/4″ (W x H x D)
- Net Dimensions (OUTDOOR): 41″ x 18″ x 32″ (W x H x D)
- Packing Dimensions (INDOOR): 52-3/4″ x 17-3/4″ x 15″ (W x H x D)
- Packing Dimensions (OUTDOOR): 43″ x 19-3/4″ x 34-1/8″ (W x H x D)
- Net Weight (INDOOR): 43.2 lbs
- Net Weight (OUTDOOR): 151 lbs
- Gross Weight (INDOOR): 55.6 lbs
- Gross Weight (OUTDOOR): 163 lbs
- Piping Size (LIQUID): 3/8″
- Piping Size (GAS): 5/8″
